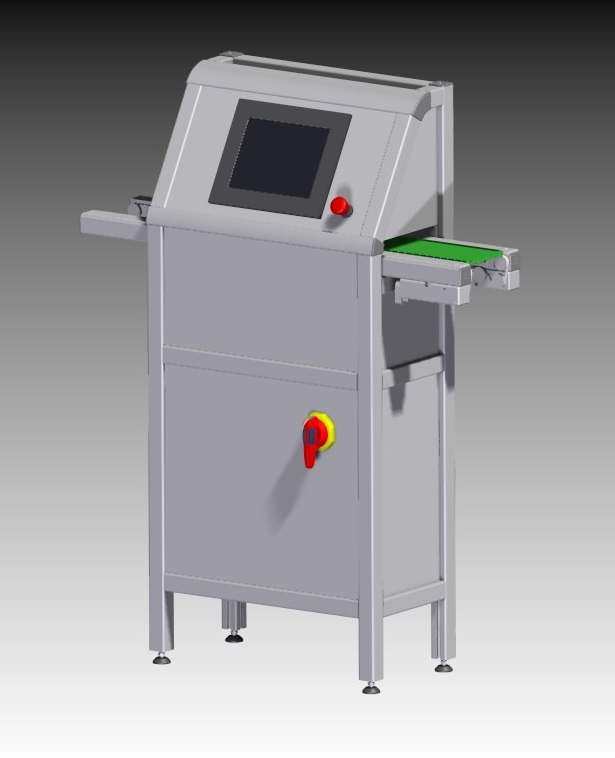

Dataveyor_®

On/Offline Matrix Tray Data Collection

• ‘Look-up’ Product sensor
• SMEMA Communications
• Variable Speed
• Left to Right Travel
• Fixed Front Rail
• ESD Edge Belt
• Data Collection
  • 1D Barcodes
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • EAN 8
    • EAN 13
    • Interleaved 2 of 5
    • MSI
    • UPCA
  • 2D Barcodes
    • Data Matrix Barcode 2
    • PDF417
  • OCR
  • Custom Barcodes
  • Image Quality Inspection
  • Part Counting
  • SQL Database
  • Flat File
  • Local or Remote Data Storage
  • Tray/Contents Electronic Record
  • Time and data stamping of data collected
  • Manual data entry (lot number, work order, etc.)
  • Product Verification
  • Date Code Range Compliance

Optional:

• Remote Pedestal Mounted Operator Interface
• Stainless Steel Construction Frame
• Tray Bottom Side Inspection
• Custom Trays
• PCB Inspection
• Custom Inspection Algorithms
• Right to Left Travel

Specifications:

• Line Height                    37” +/- 0.5”
• MTBF                            >2,000 Hours
• Yield                             100%
• Units Per Hour               Up to 900 Trays/Hour
• JEDEC Trays                 Thick or Thin
• Facility Requirements    Electrical 120VAC 50/60 Hz <6 Amps

To order or for more information contact:

• info@dataveyor.com
• 203-907-2090
